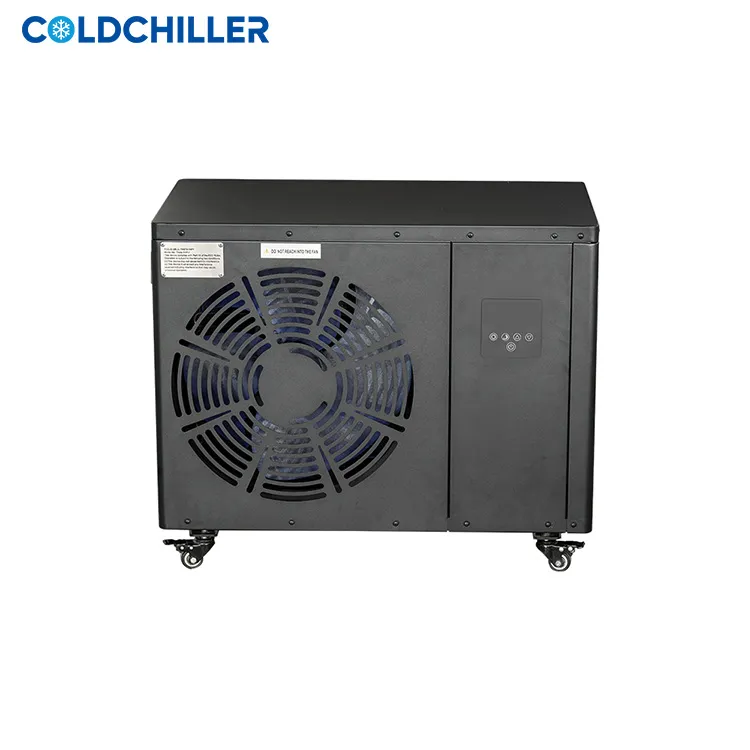

Coldchiller 1HP Grey Ice Bath Chiller
This is our second generation ice bath chiller, it has the advanced Liquid Crystal Touch Control and automatically self-check & solution system, easily and conveniently operating. As 1HP chiller, it can connect to variety kind of bath tubs with the water capacity of 300-700L and cooling or heating the water effectively. Designed with the wheels can help to move the chiller at outdoor or indoor easily.
- Flexible logo customization on the chiller or control panel.
- Smart LCD screen, highly sensitive, can slide and operate like mobile phone.
- Experienced R&D team can meet the unique customized requirements.
- Automatically self-check and solution system can better protect chiller and simplify the equipment handling.
- Power-off memory function and usage record to track usage history.
- Easy connection method between the parts, and accessories such as water pumps can be easily replaced when it’s broken.
- Certificates support for different markets, such as CE, SAA, ETL, PSE.
Product Terms
| MOQ: | 1pcs |
| Delivery time： | 25-35 working days |
| Production Capacity： | 80 units per day |
| Color： | Color customizable |
| Payment Method : | L/C, D/P,T/T, PayPal, Western Union |
| Loading Port: | Guangzhou/Shenzhen |
| Warrenty : | 1 year |
Best Ice Bath Chiller Parameters
| Power | Characteriscs | |
| Model | C-1PUT1TW |
1.lOS and Android APP, WIFI.
2.The compressor of power is 1.3HP. (Power enought,mostly other supplier’s chiller are less than 1HP). 3.Water and electricity separation system, UL approved Leakage protection plug. 4.Overheat protection.Overloading protection. 5.Well cooling power , 350L-500L water capacity, average 5 degree can be come down per hour. 6.Responsive digital touch control system. 7:Mov lightning protection function of power supply system. 8:LCD touch sliding screen, sensitive control, compressor/water pump/fan monitoring function, water pump self-protection function to prevent the water pump from idling, waterway blockage detection function, the screen can display cooling/heating energy consumption time icons, self-test system, screen display solution , intelligent operating system. Automatic water absorption function. 9: Indoor or outdoor using. 10: Easy set up and connection, hose set with quick waterproof connectors included. 11: Housecover with outdoor metal paint baking process, durable. 12: Buit-in ozone disinfection device and water filter. 13: Power loss memory function. 14: Automatic constant temperature system. 15. High-precision sensing system. 16.WlFl connection, remote control through By lOS and Android APP, WIFI( can use WIFI with wireless WANs but not only with wireless LANs) Most WIFI chiller in the market are with wireless LANs) |
| Model | 1HP(1.3HP indeed) | |
| Power Supply | 110V/60HZ | |
| Water Capacity | 300-700L | |
| Cooling Capacity | 2700W | |
| Heating Capacity | 3000W | |
| Rated Cool | 1050W | |
| Heat Power | 1150W | |
| Cool Current | 9.5A | |
| Heat Current | 10.5A | |
| S.S./D. S.Pressure | ≤1.6/4.2MPa | |
| Refrigerant | R410a/R32,Eco-friendly | |
| Vater Temperature | 3-40℃ adjustable | |
| Cooling Function & Heating Function | Yes | |
| Local Control | Responsive digital touch control system | |
| Water Filter | Yes.build in | |
| Circulation Pump | Yes.build in | |
| WIFI/APP | Yes.By lOS and Android APP, WIFI | |
| Automatically Issue Self-Check System | Yes | |
| Pump Water Max | 30L/Min | |
| Ozone Disinfection | Yes. buil-in (8W 250mg/hr) | |
| Transport Wheels | Yes | |
| Eletric Shock Proof | TYPE1 | |
| WATER PROOF | IPX4 | |
| GFCI Plug | Yes.UL plug | |
| Carry Handle | Yes | |
| Quik Connector | Yes. 4pcs Included | |
| Filter Cartridge | come with stainless steel filter cartridge/paper filter cartridge | |
| Product Dimension | 700*450*495mm | |
| N.T | 46kg | |
| Certification | CE,SAA | |
COLDCHILLER
Chiller For Ice Bath Accessories
Complete set of accessories including water pump, filter, ozone, plug, etc will be included to the ice bath tub for free. Customers do not need to purchase additionally.
Regular offering
Stainless Steel Filter Element
Selective
Paper Filter Element
Selective( with/without GFCI)
GFCl Plug
long-term use
Filter Wrench
long-term use
Chiller Water Drainage Tube
long-term use
Wheel*4
long-term use
Flexible Hose*2
long-term use
Quick Connector*4
Ice Bath Water Chiller Details Display
Chiller with universal wheels make the it can be moved easily no matter at the indoor or outdoor. Having the ice bath in a different scene as you can, such as in the gym, spa centre, sport centre, your own garden yard etc, would be a pretty good experience and good to your health.
Ice Bath Tub Chiller Control Panel
Our control system is the most advanced intelligent control system on the market. The smart LCD screen is very sensitive and can be easily slid like a mobile phone. The control system is also very completed and easy to operate. Our ice bath chiller has self-checking system, it will sound an alarm when there is a problem with the operation of the chiller, and the control panel will show the problem and provide a solution, so the customers can solve it well.
Ice Bath Chiller Temperature
Our chiller has both the cool and heat function, the temperature degree of our ice bath chiller is between 3-40°C degrees, and it may drop to under 3°C degree if the environment is ideal. Temperature can be set up or down as you need during this range. Besides, the temperature display can be set to Celsius or Fahrenheit as you need.
Cold Plunge Chiller And Filter System
The most important working condition for the normal operation of the chiller is to ensure smooth water flow, so the filter element needs to be cleaned in time to ensure that clean water enters the water pump and ensure smooth water flow in the entire system. Our ice bath chiller has the built-in filter system, it has the stainless steel filter element and paper filter element for options, both they can help block impurities and keep cleaning water.
Ozone System
The working principle of ozone disinfection is make the oxygen in the air into ozone, and then bring the ozone into the water through the negative pressure of the pipeline to achieve the purpose of disinfection without any chemical substances. Compared with UV disinfection, ozone as a gas disinfection, can diffuse the entire space without dead corners, so it can achieve a larger area and more efficient sterilization effect.
Other
The material of the water inlet pipe can be resistant to low temperature of minus 30°C and high temperatures of 100°C. The shell of the chiller is sprayed with outdoor metal paint, which does not fall off and is scratch-resistant.
CUSTOMIZED LOGO ON WATER CHILLER
CUSTOMIZED LOGO ON CONTROL PANEL
CUSTOMIZED LOGO ON SCREEN SAVER
CUSTOMIZED LOGO ON METAL PLATE
CUSTOMIZED LOGO ON WOOD PANEL
CUSTOMIZED LOGO ON INSULATION COVER
CUSTOMIZED PACKAGING
CUSTOMIZED PACKAGING
CUSTOMIZED PACKAGING
CUSTOMIZED PACKAGING
CUSTOMIZED PACKAGING
CUSTOMIZED PACKAGING
CUSTOMIZED APPEARANCE
CUSTOMIZED APPEARANCE
CUSTOMIZED APPEARANCE
CUSTOMIZED APPEARANCE
CUSTOMIZED APPEARANCE
CUSTOMIZED APPEARANCE
