Water Flow Insufficient for Water Chillers for Ice Bath: Causes and Solutions

When your water chillers for ice bath triggers a “Low Water Level” or “Water Flow Error” alarm, the issue may not originate from the chiller itself. In real operation, low water level, clogged chiller filter, kinked hoses, partially closed valves, trapped air in plumbing, or insufficient pump flow can all cause the unit to detect abnormal water flow.

When this happens, avoid disassembling the water chillers for ice bath immediately. Start by checking the tub water level, filter assembly and inlet/outlet hoses, then verify proper pump operation.

Below we outline common causes of low water flow in water chillers for ice bath, and the recommended starting inspection points for different fault symptoms, following the practical troubleshooting sequence.

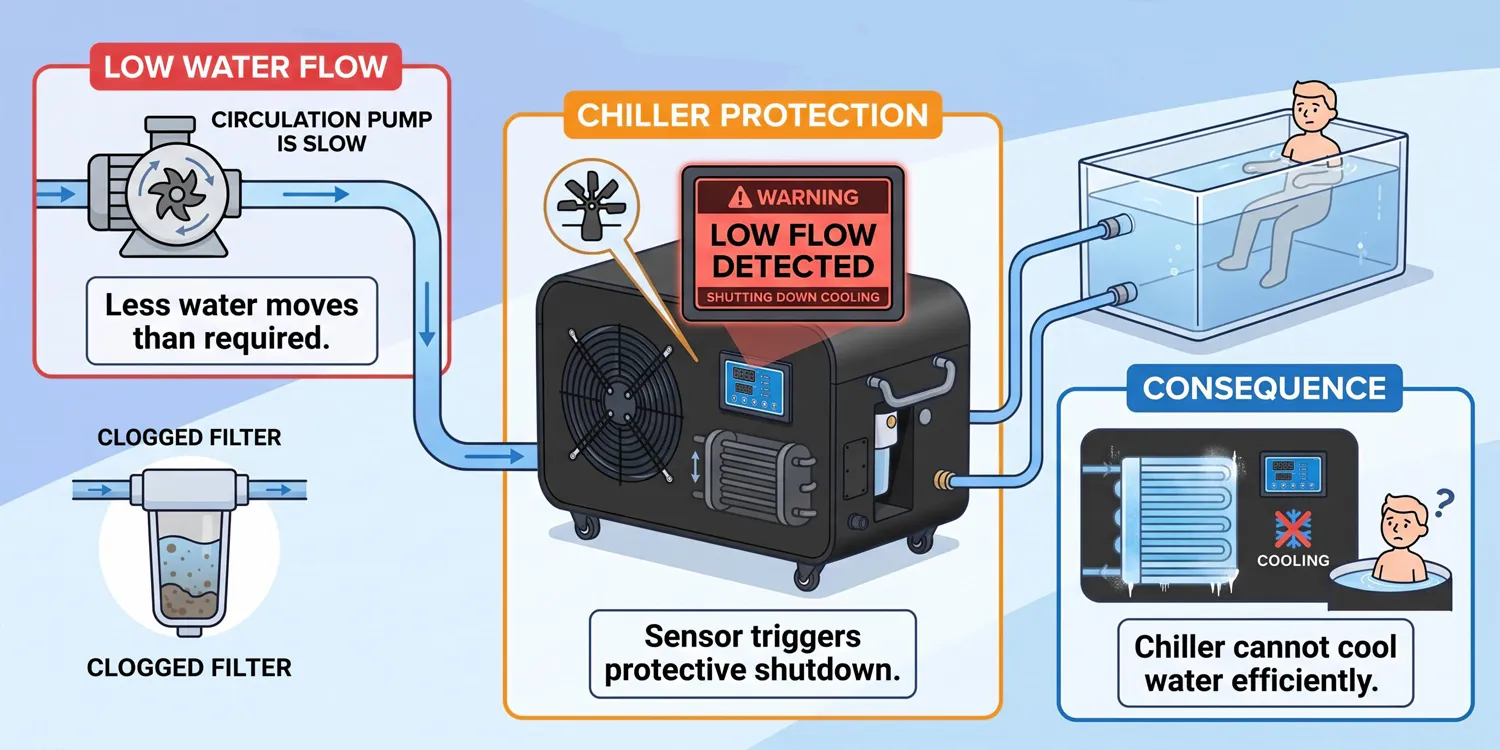

Why does the water chillers for ice bath indicate insufficient water flow?

Water chillers for ice bath cannot operate normally merely with water present. During cooling, water from the tub must be continuously circulated by the pump, pass through the chiller filter into the chiller unit, and then return cooled water back to the tub. The chiller will detect an abnormality if the circulating water flow falls below the unit’s requirement.

Therefore, low water flow does not necessarily mean there is no water flow at all. Sometimes you can still see water coming out of the return outlet, yet the actual circulation volume has dropped below the minimum operating threshold set for the water chillers for ice bath.

Insufficient circulating water flow impairs the chiller’s heat exchange process and disrupts normal operation. When water flow is inadequate, water cannot travel through the full circulation loop at the designed rate. This may lead to reduced cooling performance, unstable operation, or even complete chiller failure. The exact symptoms depend on the chiller’s construction and control logic.

Common Causes of Low Water Flow for Water Chillers for Ice Bath

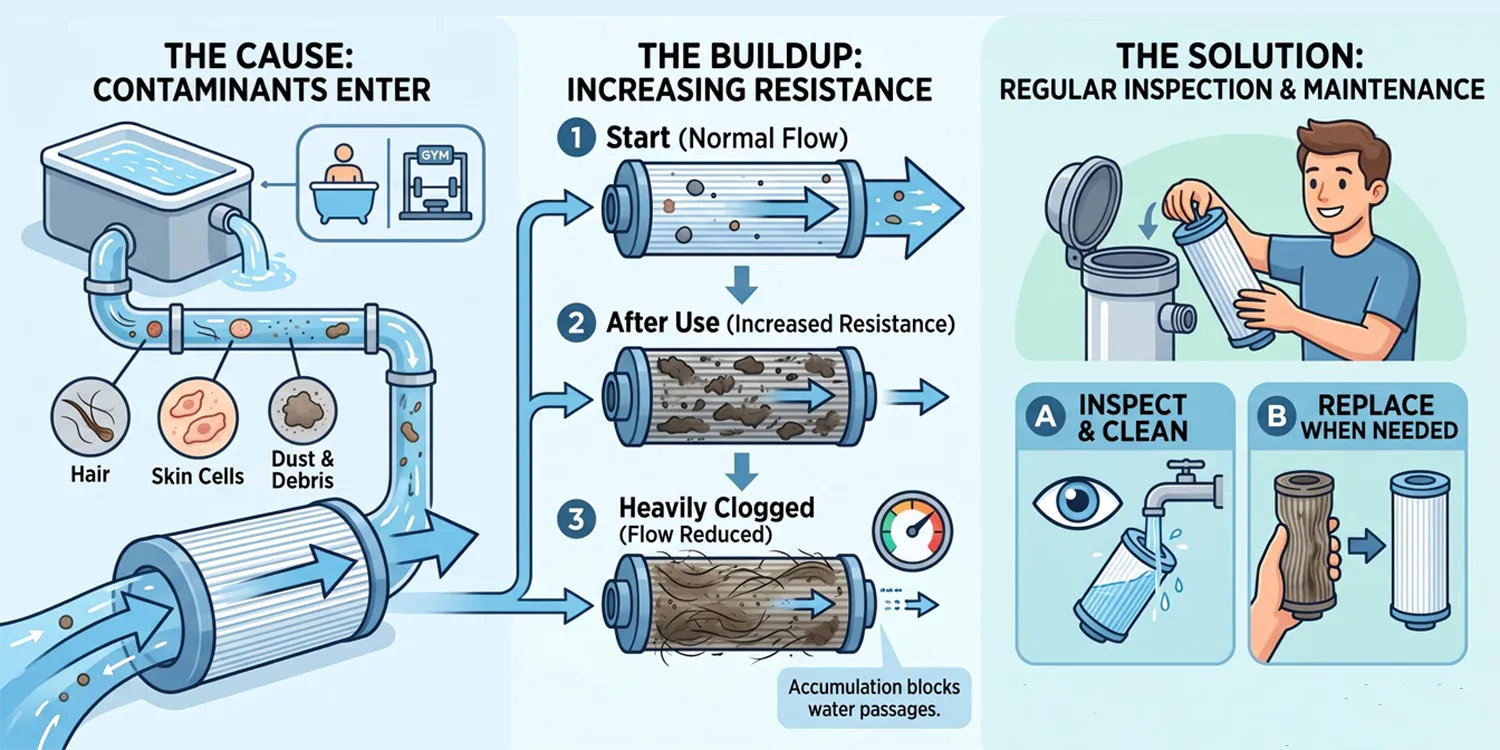

Clogged filter or chiller filter cartridge

Clogged chiller filter cartridges are one of the most common water flow issues in ice bath circulation systems. During ice bath use, hair, skin flakes, dust and other fine contaminants enter the circulating water. These impurities gradually build up on the surface of the filter cartridge. As clogging worsens, resistance to water passing through the filter increases, which ultimately reduces circulation flow.

If the water chillers for ice bath starts with normal water flow but the flow gradually decreases after a period of use, inspect the filter cartridge first.

Cleaning and replacement intervals for filter cartridges cannot be determined by a fixed number of days. Water quality and usage frequency vary greatly between residential use, multiuser setups, gyms, SPAs and other scenarios. The practical approach is to check the filter cartridge condition regularly. Clean or replace it promptly when heavy dirt buildup, deformation or blockage is observed.

Low water level in the ice bath tub

Insufficient water in the ice bath tub can also cause low water flow alarms on the water chillers for ice bath. When the water level drops below a certain point, the inlet of the circulation pump may fail to draw enough water and can even suck in air. This results in reduced and unstable water flow, which may trigger the lowflow alarm on the chiller.

This situation commonly occurs right after a water change or after prolonged use as water evaporates. If you notice the water level keeps dropping continuously, simply topping up water is not enough. You also need to check for leaks at hose connections, valves and the plunge tub itself.

Note that different water chillers for ice bath have different minimum water level requirements. When refilling water, follow the water level mark on the tub or product manual. Do not use standards from other units for reference.

Kinked or Crushed Hoses & Partially Closed Valves

The circulating water loop of water chillers for ice bath usually uses flexible hoses for connections. If the pipe is bent at too small a radius during installation, or the hose gets squeezed after equipment relocation, the inner diameter of the pipe will shrink and raise resistance to water flow.

Pay special attention to areas near the chiller inlet and outlet connections, pipe bends and the bottom of the ice bath tub. Sometimes the hose looks intact externally, yet internal flow is restricted due to kinking.

Besides, valves on the circulation loop will also limit flow if not fully opened. If you have recently adjusted plumbing, moved the unit or reinstalled valves in your ice bath system, check that all valves are fully open as your first step.

Trapped Air in the Plumbing

If the low water flow alarm appears right after refilling water, cleaning the chiller filter, or disconnecting and reconnecting plumbing, trapped air inside the circuit should be your primary suspect.

Once air enters the chiller water circulation system, it may cause intermittent water flow and change the operating sound of the pump. In severe cases, normal circulation will be disrupted. A small amount of trapped air is quite common for newly installed units or systems just serviced.

This type of issue can usually be resolved by running the circulation system long enough to bleed air out gradually. If your water chillers for ice bath comes with built-in air venting components, follow the product manual to perform air purging.

Insufficient Pump Flow or Abnormal Pump Operation

The pump drives chiller water to circulate between the ice bath tub, filter and chiller unit, so its actual flow directly determines whether the water chillers for ice bath can work properly.

A rotating pump does not guarantee adequate flow. Long-term operation can cause internal component wear or abnormal pump conditions, reducing its actual output capacity. In addition, if users replace the pump by themselves only matching the connection size without verifying flow and head specifications, the pump may be incompatible with the water chillers for ice bath.

If the chiller filter, water level and plumbing are all in good condition yet the water flow remains weak, inspect the pump itself and check whether its flow and head are suitable.

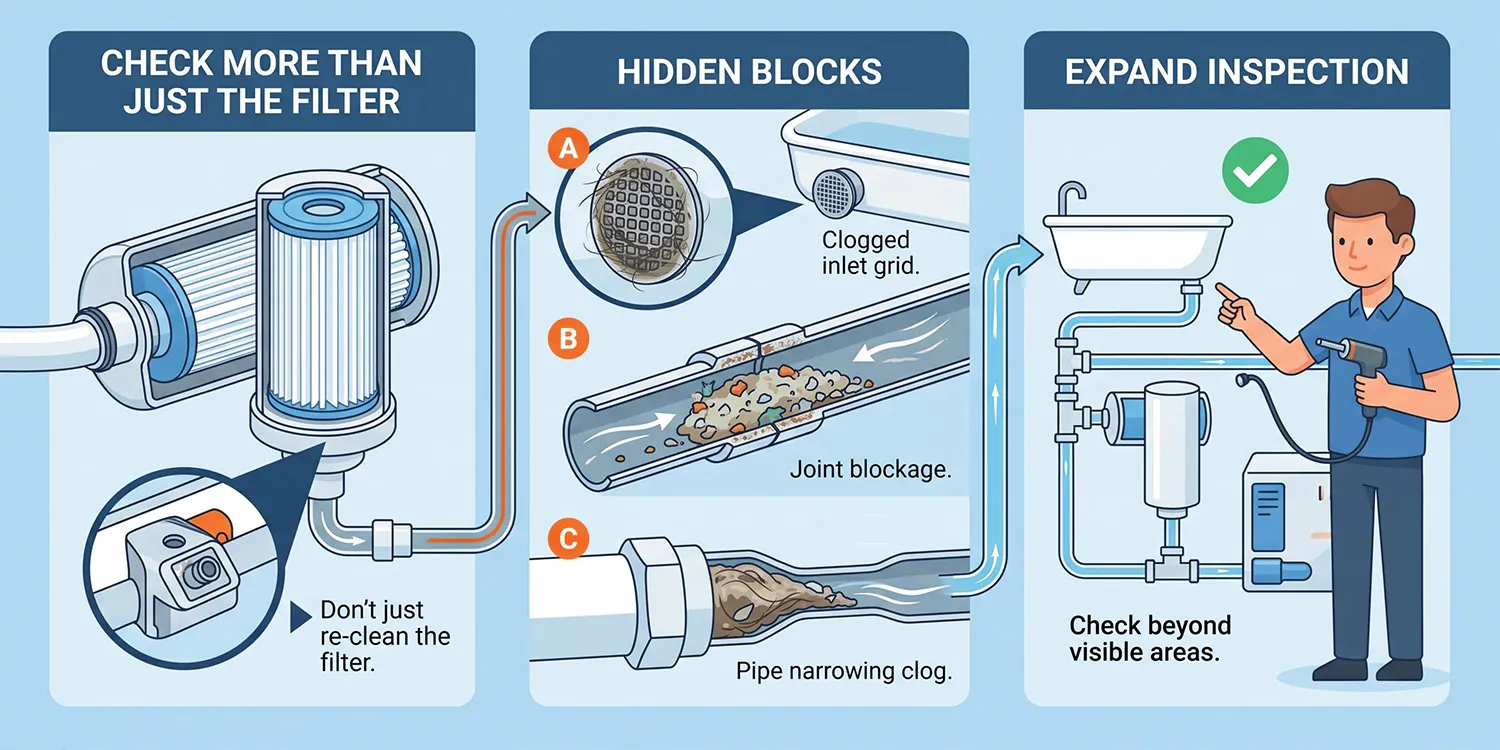

Blocked Inlet or Internal Pipework

Besides the chiller filter, several spots in systems for water chillers for ice bath tend to collect debris.

For example, the grille at the tub suction inlet may get covered with hair, dirt may remain inside the filter housing, and contaminants can accumulate at pipe fittings or reducer sections. For units with long operating hours, poor water quality control may lead to limescale and other sediment buildup.

This type of blockage is often hard to spot visually from the outside. If the chiller filter has been thoroughly cleaned yet water flow remains noticeably low, expand your inspection scope instead of repeatedly cleaning the filter cartridge.

What to do if low water flow still appears after cleaning the chiller filter?

If the alarm still appears after cleaning the chiller filter, do not only focus on the filter cartridge. Inspect the entire water loop from the ice bath suction inlet, circulation pump, filter to the water chillers for ice bath, and check for blockages, kinks or other issues restricting chiller water flow.
If there is no obvious blockage on the external plumbing but the water flow remains weak, turn your attention to the pump. Even if the pump is running, reduced actual flow may fail to meet the circulation requirements of the water chillers for ice bath.
If you have checked the water level, chiller filter, plumbing and pump, yet water flow is still noticeably low, further inspect the inlet, filter housing and pipes for hidden blockages. If all these parts are normal, it is recommended to contact the chiller manufacturer for further troubleshooting.

Why the Chiller Still Alarms Even When Water Flow Looks Normal？

Visible water flow at the return outlet does not guarantee normal circulation efficiency. Even if water is flowing, clogged chiller filter cartridges, high pipe resistance, or insufficient actual pump flow will hinder the circulation of chiller water between the ice bath tub and water chillers for ice bath.

If water flow is noticeably weak and cooling speed also drops, prioritize inspecting the filter cartridge, hoses, pump, and inlet/outlet ports, instead of only checking whether water comes out from the return outlet.

Where to Check First for Different Fault Symptoms?

In practical troubleshooting, you do not need to inspect all components from the start. Details such as when the water flow began to drop and whether water refilling or cleaning was performed before the alarm can help narrow down the scope of inspection for your water chillers for ice bath.

When to Contact Your Chiller Manufacturer?

If you have checked the water level, chiller filter, inlet/outlet hoses and pump, yet the water flow remains obviously insufficient or cooling performance does not recover, it is not recommended to keep disassembling the unit yourself.

Especially when accompanied by frequent start-stop cycles, abnormal noises, water leaks or other alarm codes, it is best to contact the manufacturer of your water chillers for ice bath or professional service technicians for further inspection.

When reaching out to after-sales support, provide the unit model number, alarm code and detailed fault symptoms. If you have replaced the pump or filter previously, share the part specifications as well. Photos or videos showing the unit operation and plumbing connections will help technicians diagnose the problem faster.

Advantages of ColdChiller as a Cold Plunge Chiller Supplier？

As a professional cold plunge chiller supplier, ColdChiller cold plunge chillers are equipped with freeze protection and automatic defrost designs optimized for low-temperature environments. During testing, the unit ran continuously for 8 hours at -10°C while maintaining stable core operation. Only a small amount of frost formed, and defrost speed has been improved compared with the previous generation.
The chiller adopts three-stage freeze protection. It automatically adjusts freeze prevention modes based on ambient temperature and inlet water temperature, ranging from intermittent chiller water circulation, continuous pump operation, to active heating. This stepwise mechanism reduces the risk of ice formation inside pumps and plumbing under cold conditions.
Beyond freeze protection, ColdChiller supports WiFi remote connectivity. Once connected to the network, users can remotely monitor operating status. When faults occur, the system indicates the fault location and provides corresponding inspection and troubleshooting guides for easy self-check.
This feature is especially valuable for units installed outdoors, in gyms, spas or hotels. It suits projects with multiple running units, reducing frequent on-site visits and simplifying maintenance.
For bulk orders, we offer chiller selection recommendations tailored to project scenarios and help verify compatibility among pumps, chiller filter, ice bath tubs and inlet/outlet plumbing. Dealers and project clients can further discuss OEM/ODM options, product configurations and spare parts supply based on order volume. Feel free to contact us.

FAQs

Question1:What does low water level alert mean on some cold plunge chiller?

Answer:It means the unit detects insufficient chiller water circulation flow. Common causes include clogged chiller filter, low water level, trapped air in plumbing or inadequate pump flow.

Question2:Why does the cold plunge chiller still show low flow after cleaning the chiller filter?

Answer:The filter cartridge is only one possible cause. Continue checking the water level, suction inlet, plumbing and pump.

Question3:The pump is running normally, why does the cold plunge chiller still report flow fault?

Answer:A spinning pump does not guarantee sufficient flow. It may have degraded pump performance or mismatched pump specifications.

Question4:Can I keep running the cold plunge chiller if water flow is insufficient?

Answer:Longterm operation with noticeably low flow is not recommended. Low flow impairs chiller water circulation and cooling performance, and may also lead to abnormal pump operation. Once weak flow is detected, inspect water level, chiller filter, plumbing and pump first. Resume operation only after confirming normal circulation.
